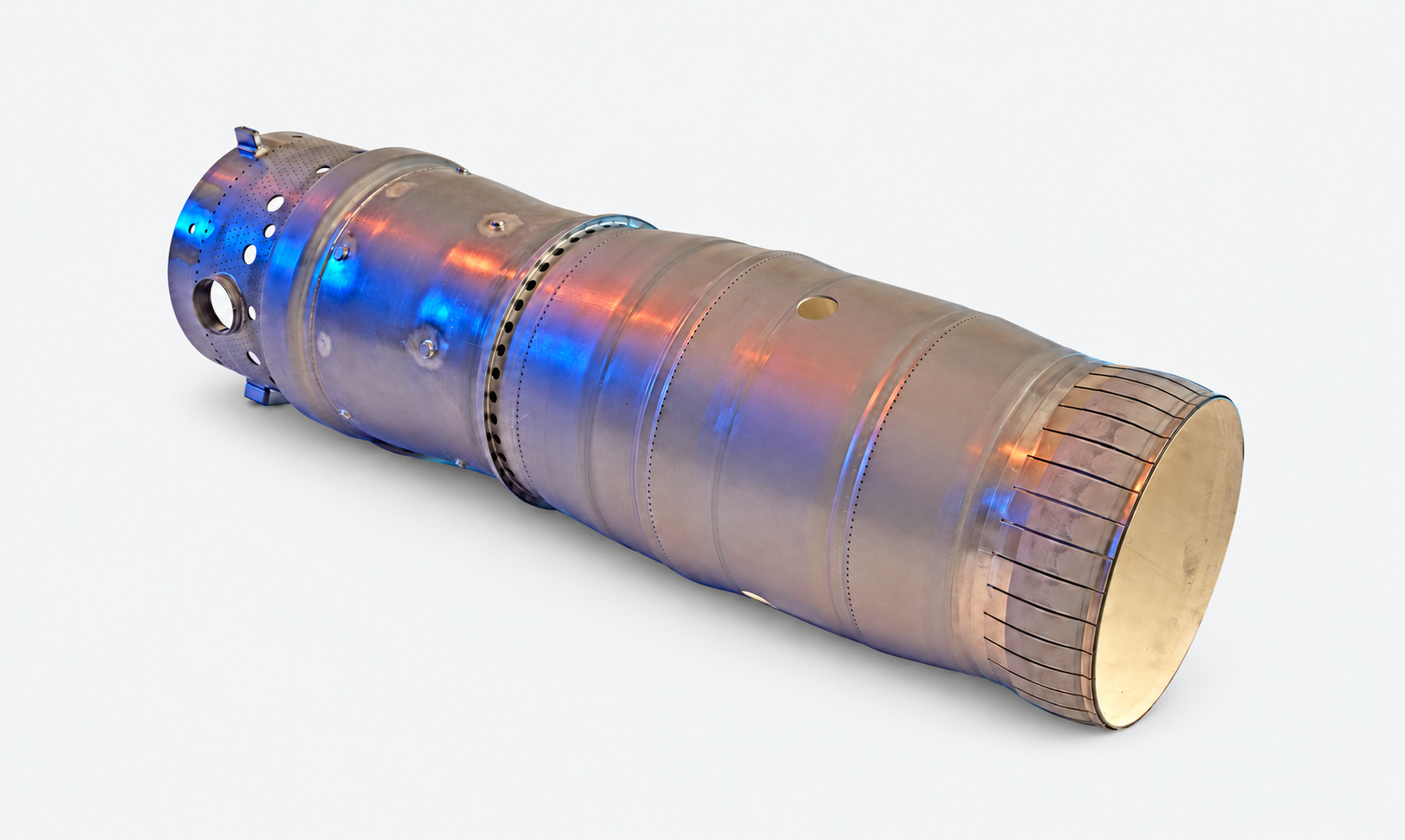

The Frame 6B LEC III combustion liner defines the inner combustion passage within the designated LEC III assembly. Its stepped cylindrical profile, local openings and end features connect the combustion zone with the surrounding head-end and downstream hardware. OBT supports custom manufacturing projects for this component family, with the exact configuration established through technical review.
The stepped body, larger wall openings and slotted outlet region are treated as configuration-controlled features. OBT reviews both connection ends, locating details and the surrounding assembly requirements before defining the liner manufacturing route.
OBT combines high-temperature-alloy sheet-metal fabrication with forming, laser cutting, welding and heat-treatment resources. CNC machining can be integrated for designated interfaces, with coordinate measurement and material inspection used to verify the agreed production requirements. The fabrication route is selected to suit the approved liner design.
Please provide engineering drawings or a representative physical sample for quotation and technical review. If drawings are unavailable, OBT can evaluate the sample for reverse engineering. The material, critical dimensions, quantity and inspection requirements are agreed with the customer before production.
Our professional sales team are waiting for your consultation.
