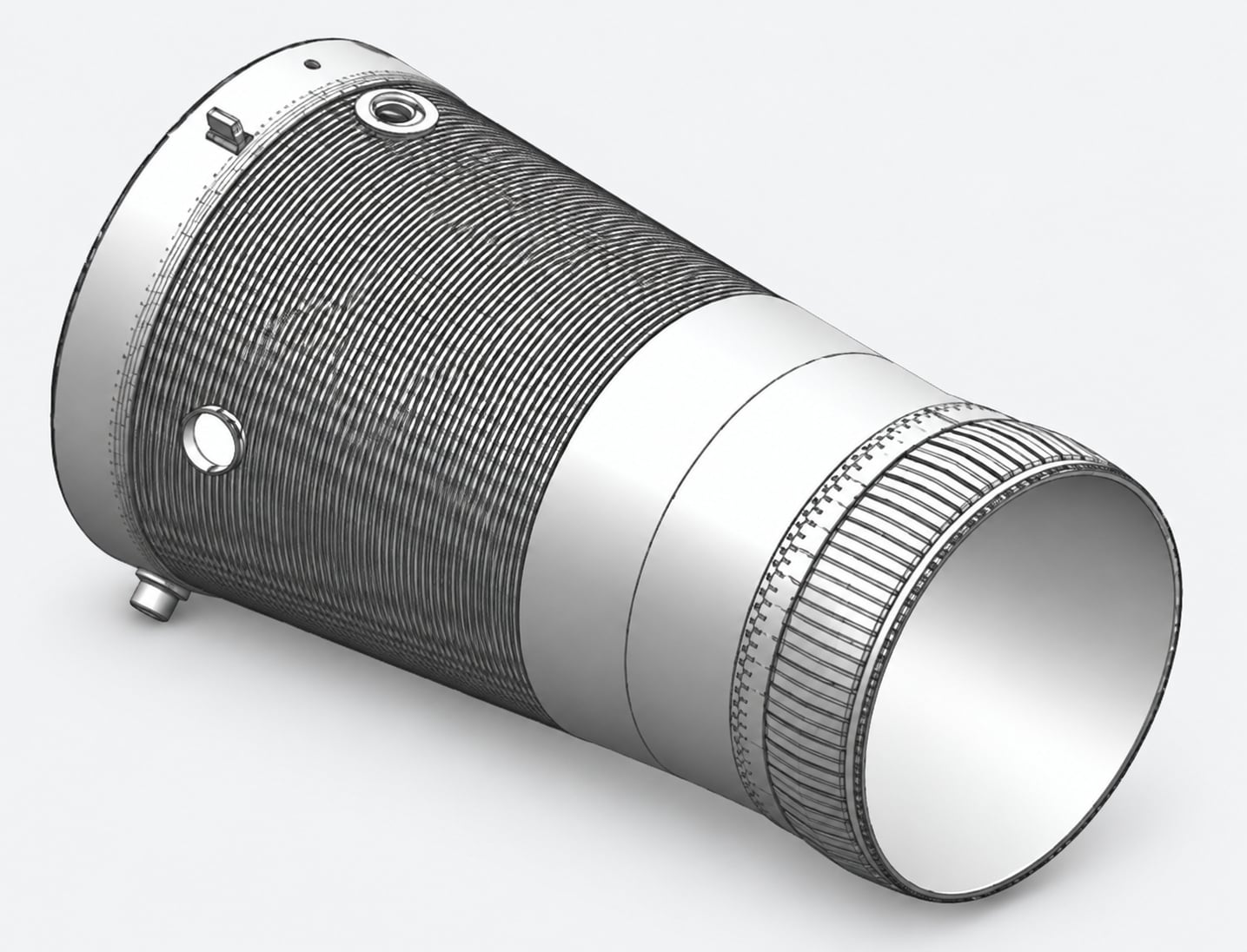

The Frame 6FA.03 combustion liner forms the inner combustion passage within the designated F-class combustion system. Its cylindrical body, inlet features and formed outlet region establish the component's position between the head-end assembly and downstream transition hardware. OBT supports custom manufacturing projects for this component family, with the exact configuration established through technical review.
The inlet features, changes in wall construction, body openings and formed outlet section are reviewed against the required head-end and transition interfaces. OBT defines the material, fabrication route and retention-feature controls for the selected 6FA.03 liner configuration.
OBT combines high-temperature-alloy sheet-metal fabrication with forming, laser cutting, welding and heat-treatment resources. CNC machining can be integrated for designated interfaces, with coordinate measurement and material inspection used to verify the agreed production requirements. The fabrication route is selected to suit the approved liner design.
Please provide engineering drawings or a representative physical sample for quotation and technical review. If drawings are unavailable, OBT can evaluate the sample for reverse engineering. The material, critical dimensions, quantity and inspection requirements are agreed with the customer before production.
Our professional sales team are waiting for your consultation.
